Figure 3 shows a set of histograms of for the entire brain
volume with the skull and background removed. With no temporal filtering, the
histogram has a peak at the low values of
representing tissue with high autocorrelation, and a peak at
corresponding to white noise.

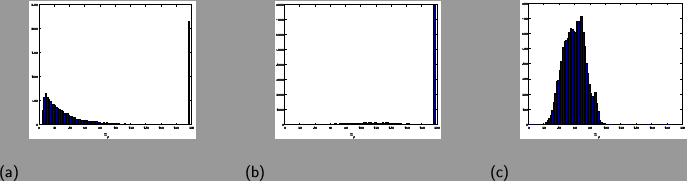

Figure 3:
Histograms of for a null FMRI dataset
with (a) no temporal filtering (b) non-linear high-pass filtering
(c) Low pass filtering matched to a Gaussian HRF followed by non-linear high-pass
filtering. The only preprocessing is motion correction.
Similar results were obtained for five other null datasets from
three different subjects on the same scanner. The two apparent
populations in (b) are due largely to white and grey-matter; this
can be seen in the spatial map of in figure 4.
|
