Comparison with Existing Methods
A comparison of FLIRT with several other registration packages was
initially performed using the consistency test explained above. The
other registration packages used were AIR [19],
SPM [6], UMDS [16] and
MRITOTAL [3]. These methods were chosen because the
authors' implementations were available, and so this constituted a
fair test as opposed to a re-implementation of a method described in a
paper, where often the lack of precise implementation details makes it
difficult to produce a good working method.
The particular experiment that was performed
was inter-subject and inter-modal
using 18 different images
as the floating images (like the one shown in
Figure 9), all with the MNI
305 brain [3] as the reference image. The 18 images were
all
, T2-weighted MR images with voxel
dimensions of 0.93mm by 0.93 mm by 5mm, while the MNI 305 template
is a
, T1-weighted MR image with voxel
dimensions of 1mm by 1 mm by 1mm.
Figure 9:
Example slices from one of the images used in the
consistency study (after registration). The red lines represent edges
from the standard image (the reference image) overlayed on the
transformed initial image.
|
The results of one such test, using six different rotations about the
Anterior-Posterior axis, are shown in
Figure 10. It can be seen that only FLIRT
and MRITOTAL performed consistently. This indicates
that the other methods (AIR, SPM and UMDS) frequently get trapped in local minima, i.e. are not as robust.
A further consistency test was then performed comparing only MRITOTAL
and FLIRT. This test used initial scalings rather than rotations.
The reason that this is important is that MRITOTAL uses a
multi-resolution local optimisation method (Gradient Descent) but
relies on initial pre-processing to provide a good starting position.
This pre-processing is done by finding the principle axes of both
images and initially aligning them. Consequently the initial
alignment compensates for rotations but does not give any information,
and hence correction, for scalings.
The results of the scaling consistency test are shown in
Figure 11. It can be seen that, although generally
consistent, in three cases MRITOTAL produces registrations that deviate
by more than 20mm (RMS) from each other. In contrast, FLIRT was consistent
(less than 2mm RMS) in all cases.

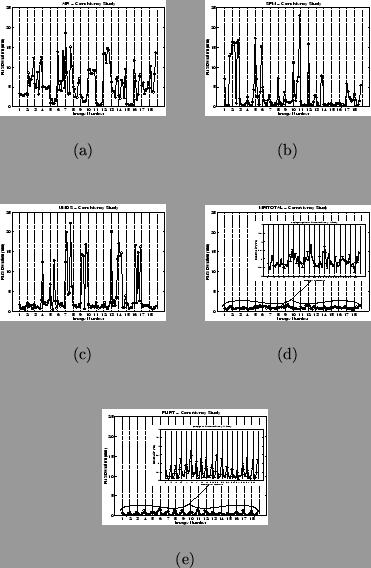

Figure 10:
Results of the consistency
study, plotting RMS deviation (in mm) versus image number for (a)
AIR, (b) SPM, (c) UMDS, (d) MRITOTAL and (e) FLIRT. For each of
the 18 source images (T2-weighted MRI images with voxel dimensions
of 0.93mm by 0.93 mm by 5mm) there are 6 results corresponding to
initial starting rotations of -10,-2,-0.5,0.5,2, and 10 degrees
about the -axis (anterior-posterior axis). All of the methods,
except FLIRT and MRITOTAL, show large deviations and are therefore
inconsistent and non-robust.
|

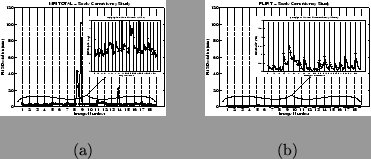

Figure 11:
Results of the scale
consistency study, plotting RMS deviation (in mm) versus image
number for (a) MRITOTAL and (b) FLIRT. For each of the 18 source
images (T2-weighted MRI images with voxel dimensions of 0.93mm by
0.93 mm by 5mm) there are 6 results corresponding to initial
scalings of 0.7, 0.8, 0.9, 1.1, 1.2 and 1.3 about the Centre of
Mass. In three cases MRITOTAL shows large deviations and so is
less consistent and robust than FLIRT in this case.
|
